AUTOMATIC
QUICK COUPLING-
SYSTEM FOR
EXCAVATORS
Swivel buckets, clamshell buckets, concrete crushers, compactors, forestry tongs or hydraulic hammer: We supply the right quick couplers for any application. For mini excavators and large construction machinery of up to 120 tonnes. From landscaping to civil engineering, from demolition to railway construction: With OilQuick quick couplers your excavator turns into a multifunctional tool holder, giving you the right tool for any situation on the construction site.
THE OQ SERIES
OQ 40
1-5 t
OQ 40-5
1-6 t
OQ 45-5
5-12 t
OQ 60-5
8-15 t
OQ 65
14-22 t
OQ RAIL
OQ 70
15-28 t
OQ 70/55
18-32 t
OQ 80
25-43 t
OQ 90
40-70 t
OQ 120
70-120 t
THE OQ SERIES

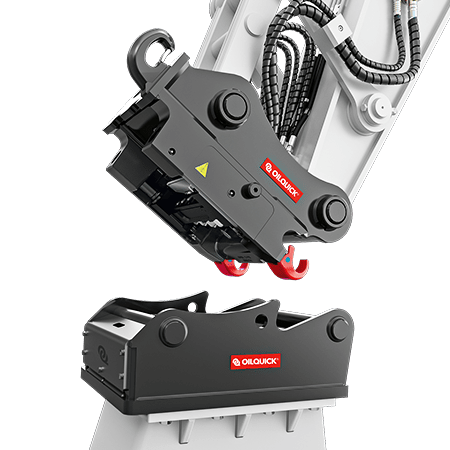

TOOLCHANGE
FROM THE CAB
ONE…
TWO…
GO!
TOOLCHANGE
FROM THE CAB
ONE…
TWO…
GO!
TOOLCHANGE
FROM THE CAB
ONE…
TWO…
GO!
FOR EVERYONE WITH BIG PLANS
WE MAKE YOU MORE EFFICIENT!
Mini excavator or heavy equipment? Mechanical or hydraulic tool? Every fleet is different, but the OilQuick operating principle always fits. And the result too: you’ll work more comfortably, faster and safer. No matter what equipment, in the OilQuick range of products you will find the right quick coupler and adapter for all attachments. Our promise to you: We’ll match our quick coupler with your excavator.
HYDRAULIC FRAMES
SCREW ADAPTERS FOR MANY POPULAR ATTACHMENTS
MECHANICAL FRAMES
HYDRAULIC PENDULUM ADAPTERS
FUNCTIONALITY AND SAFETY
WELL THOUGHT-OUT DOWN TO THE LAST DETAIL
Discover what we mean by quality and how we make your everyday work safer!
ROBUST
QUICK COUPLER
– Precisely milled and welded from high-quality steel – precisely adapted to the excavators in each weight class
UPGRADABLE
DROP GUARD
– Movable and exchangeable safety catch to protect against falling attachments, even when the locking mechanism is open
WEAR-FREE
OILQUICK ADAPTER FRAMES
– With loading aid, hardened and welded axles and precise fit for a connection free of play with a long service life
H-CYLINDER WITH
QUICK COUPLINGS
– Connect hydraulic circuits and lock quick couplers with a single cylinder movement
OPTIONAL
TAG READER
– Identify tools via RFID when coupling and automatically set important parameters
REDUNDANT
PRESSURE RETENTION VALVES
– Stable pressure, even when a hose breaks, for a secure connection between quick coupler and attachment
ROBUST
QUICK COUPLER
– Precisely milled and welded from high-quality steel – precisely adapted to the excavators in each weight class
UPGRADABLE
DROP GUARD
– Movable and exchangeable safety catch to protect against falling attachments, even when the locking mechanism is open
WEAR-FREE
OILQUICK ADAPTER FRAMES
– With loading aid, hardened and welded axles and precise fit for a connection free of play with a long service life
H-CYLINDER WITH
QUICK COUPLINGS
– Connect hydraulic circuits and lock quick couplers with a single cylinder movement
OPTIONAL
TAG READER
– Identify tools via RFID when coupling and automatically set important parameters
REDUNDANT
PRESSURE RETENTION VALVES
– Stable pressure, even when a hose breaks, for a secure connection between quick coupler and attachment
ROBUST
QUICK COUPLER
– Precisely milled and welded from high-quality steel – precisely adapted to the excavators in each weight class
UPGRADABLE
DROP GUARD
– Movable and exchangeable safety catch to protect against falling attachments, even when the locking mechanism is open
WEAR-FREE
OILQUICK ADAPTER FRAMES
– With loading aid, hardened and welded axles and precise fit for a connection free of play with a long service life
H-CYLINDER WITH
QUICK COUPLINGS
– Connect hydraulic circuits and lock quick couplers with a single cylinder movement
OPTIONAL
TAG READER
– Identify tools via RFID when coupling and automatically set important parameters
REDUNDANT
PRESSURE RETENTION VALVES
– Stable pressure, even when a hose breaks, for a secure connection between quick coupler and attachment

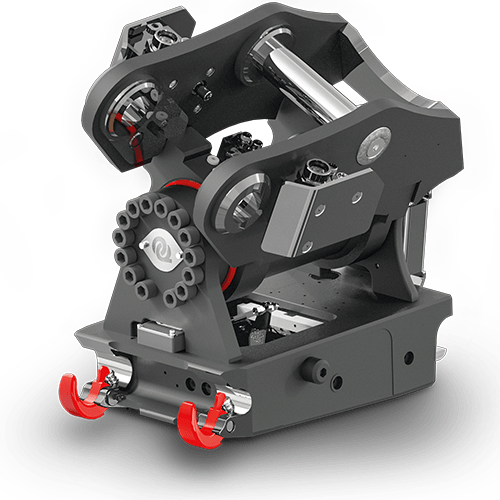

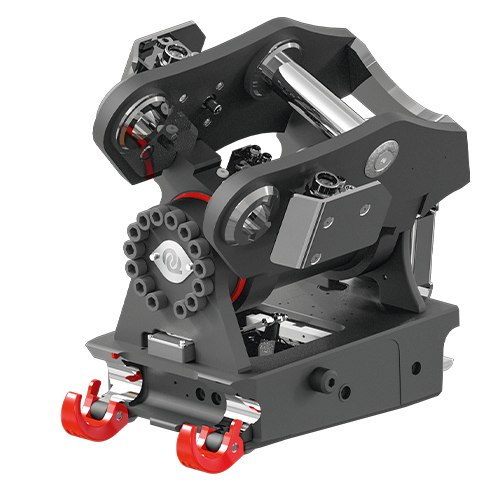

THE EXTRA TWIST
SWING COUPLERS
Swing couplers take your efficiency to a new level: Instead of constantly having to shift the excavator, the attachment can simply be tilted thanks to the integrated swivelling drive – an enormous time advantage, for example when working on embankments or digging narrow trenches with the trench clearing bucket. The OilQuick swing coupler gives your attachments additional flexibility with compact dimensions, low weight and a constantly high swing torque. The housing is robust and the design is easy to maintain.
YOUR SAFETY
REDEFINED
EFFICIENCY MEETS
OCCUPATIONAL SAFETY
FIND OUT MORE
SMARTER: VISUAL MRL DISPLAY
Popular with machine operators and acclaimed by health and safety experts: The OilQuick visual MRL display was jointly developed with users and makes locking control easier than ever before.
SAFER: DROP GUARD
Incorrectly mounted attachment? Accidentally opened locking bolts? The OilQuick drop guard reliably prevents your attachments from falling.
MORE EFFICIENT: OILQUICK APP
The OilQuick app helps you to perform routine tasks such as ordering spare parts, maintenance and repairs more quickly and easily – directly on the construction site using your smartphone or tablet.
SMARTER: VISUAL MRL DISPLAY
Popular with machine operators and acclaimed by health and safety experts: The OilQuick visual MRL display was jointly developed with users and makes locking control easier than ever before.
SAFER: DROP GUARD
Incorrectly mounted attachment? Accidentally opened locking bolts? The OilQuick drop guard reliably prevents your attachments from falling.
MORE EFFICIENT: OILQUICK APP
The OilQuick app helps you to perform routine tasks such as ordering spare parts, maintenance and repairs more quickly and easily – directly on the construction site using your smartphone or tablet.
YOUR INTELLIGENT TOOL MANAGER
OILQUICK TOOL CONTROL
Discover how Tool Control 3 makes controlling your quick coupler easier.
The new Tool Control 3 assistance system identifies attachments paired with the tag reader and improves communication between the quick coupler and the tool. If the attachment has no tag, you can manually select the tool via the display.
YOUR INTELLIGENT TOOL MANAGER
OILQUICK TOOL CONTROL
The new Tool Control 3 assistance system identifies attachments paired with the tag reader and improves communication between the quick coupler and the tool. If the attachment has no tag, you can manually select the tool via the display.
Discover how Tool Control 3 makes controlling your quick coupler easier.
LOCKING STATUS
Is your attachment correctly mounted and properly locked? Only then does Tool Control light up green.
ROBUST
HOUSING
Moisture, dust or cold: All materials, workmanship and design of Tool Control are made for your tough day-to-day work on the construction site.
COLOUR
DISPLAY
High-contrast and dimmable, the high-quality, heavy-duty display ensures good readability in all lighting conditions.
RFID
TOOL IDENTIFICATION
What pressure? How much oil? When changing attachments, Tool Control reads the data stored on the transponder and automatically adjusts the settings on the excavator.
UNIQUE IDENTIFICATION OF ATTACHMENTS
AUTOMATIC ADJUSTMENT OF IDEAL PRESSURE AND OIL QUANTITY
ENABLE, SWITCH ON OR OFF ADDITIONAL FEATURES
INTUITIVE USER INTERFACE
VISUAL AND ACOUSTIC COMMUNICATION OF RELEVANT DATA
ERROR DIAGNOSTICS
DATA TRANSFER VIA USB, BLUETOOTH, LAN OR WIFI
DOCUMENTATION/EXPORT OF TOOL DATA
SELF-LEARNING SYSTEM WITH EQUIPMENT DATABASE
NON-PROPRIETARY
CAN BE UPGRADED AT ANY TIME, MAINTENANCE AND SERVICE FRIENDLY
