OQTRS E06
For all excavators from 4 to 6 t
For digging around obstacles, filling with maximum precision or creating models to that are gentle on the substrate: The OilQuick tiltrotator enables maximum freedom of movement and quick tool changes without implements.
FIND THE OILQUICK DEALER
NEAR YOU
THE OQTRS SERIES – OILQUICK TILTROTATORS WITH SANDWICH CONSTRUCTION
OQTRS E06
4-6 t
OQTRS E09
6-9 t
OQTRS E14
9-14 t
OQTRS E19
14-19 t
OQTRS E26
19-26 t
OQTRS E33
24-33 t
OOTRS E06
4-6 t
OQTRS E09
6-9 t
OQTRS E14
9-14 t
OQTRS E19
14-19 t
OQTRS E26
19-26 t
OQTRS E33
24-33 t

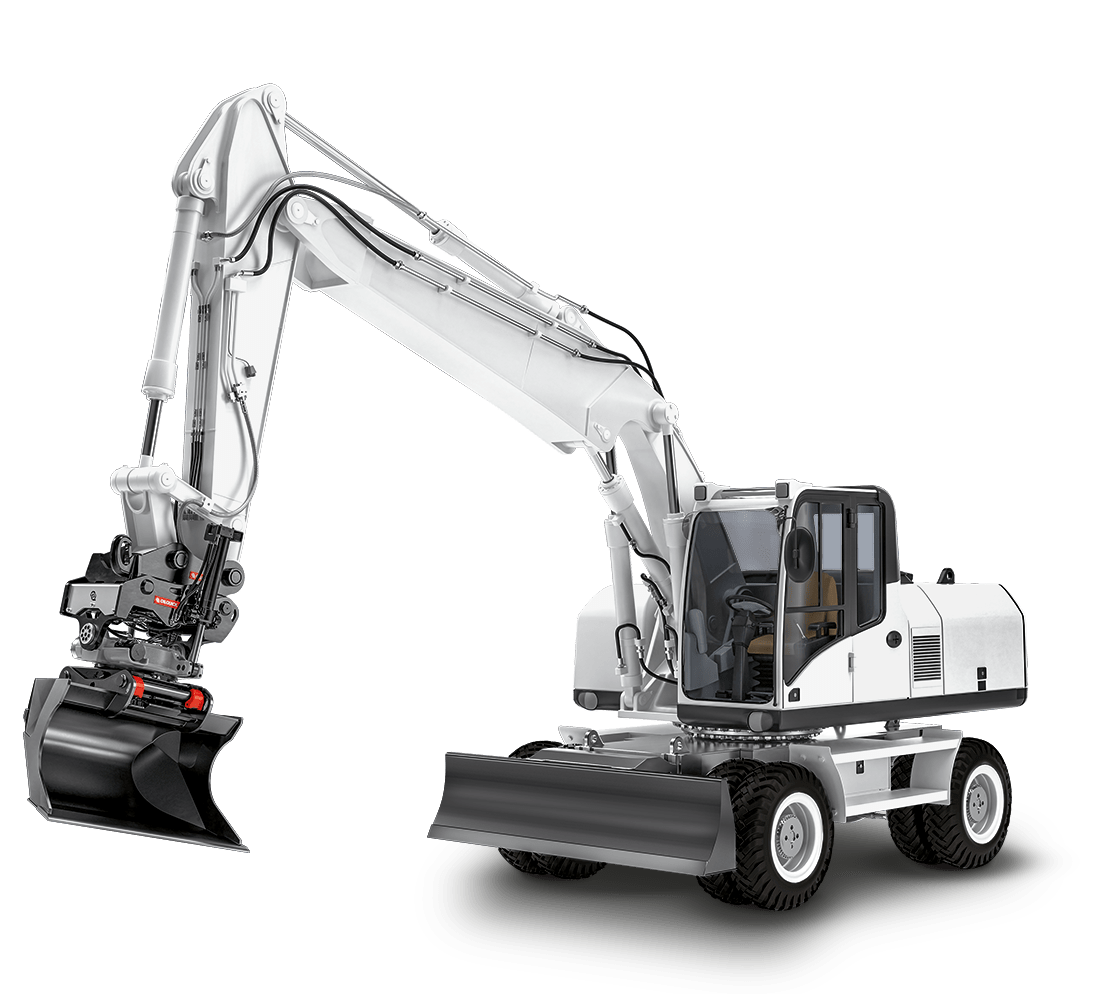

MAKE MORE OUT OF YOUR MACHINE!
No matter which excavator model and which size, as fixed attachment or sandwich attachment: You get a tailored tiltrotator quick coupler combination and perfectly coordinated adapter for your attachments. Control is adapted to your supporting device.
Technical data OilQuick tiltrotators
| Max. scoop width | 1.2 m |
| Max. breakaway torque | 45 kNm |
| Weight (kg) | from 280 kg |
| Swivel angle | up to 2×45° |
| Swivel time for 90° | 3 sec. at 15 l/min |
| Rotation | infinite |
| Rotation speed / revolution | 6.5 sec. at 30 l/min |
Dimensions
| OQ45-4/-5 |
| Dim. (A) 577 mm |
| Dim. (B) 363.5 mm |
| Dim. (C) 472.5 mm |
| Dim. (D) 573 mm |
Technical data OilQuick tiltrotators
| Max. scoop width | 1.2 m |
| Max. breakaway torque | 45 kNm |
| Weight (kg) | from 280 kg |
| Swivel angle | up to 2×45° |
| Swivel time for 90° | 3 Sek. at 15 l/min |
| Rotation | infinite |
| Rotation speed / revolution | 6.5 sec. at 30 l/min |
Dimensions
| OQ45-4/-5 |
| Dim. (A) 577 mm |
| Dim. (B) 363.5 mm |
| Dim. (C) 472.5 mm |
| Dim. (D) 573 mm |
Technische Daten Tiltrotatoren
| Max. scoop width | 1.2 m |
| Max. breakaway torque | 45 kNm |
| Weight (kg) | from 280 kg |
| Swivel angle | up to 2×45° |
| Swivel time for 90° | 3 sec. at 15 l/min |
| Rotation | infinite |
| Rotation speed / revolution | 6.5 sec. at 30 l/min |
Dimensions
| OQ45-4/-5 |
| Dim. (A) 577 mm |
| Dim. (B) 363.5 mm |
| Dim. (C) 472.5 mm |
| Dim. (D) 573 mm |
|
